303/30/100 Oil Flatfrom Galvanized steel grating
303/30/100 Oil Floor Plate Galvanized steel grating
- Model： 305/355/405/505 Grating plate
303/30/100 Hot Dipped Galvanized Steel Grating

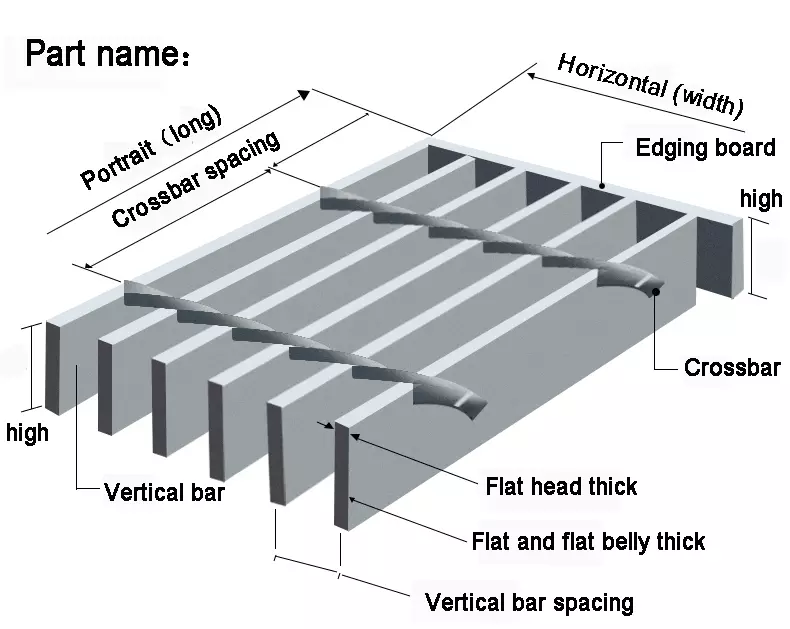

Steel grating is basically consist of Bearing bar and Cross bar by automatic press welding machine as following chart:
Product details

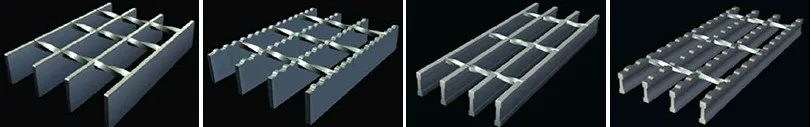

Plain type Serrated type I Type Serrated I type
| Product name | steel grating |
| Material | Carbon steel/stainless steel |
| Material standard | ASTM A36/BS4360/AS3679 |
| Bearing bar type | Flat bar/serrated bar/I bar |
| Bearing bar thickness | 2mm to 6mm |
| Bearing bar pitch | commom: 20mm/30mm/40mm/50mm/60mm/up |
| Surface treatment | Hot dipped galvanized/untreatment/painting |
| HDG standard | ASTM A123/BS729/AS1650 |
